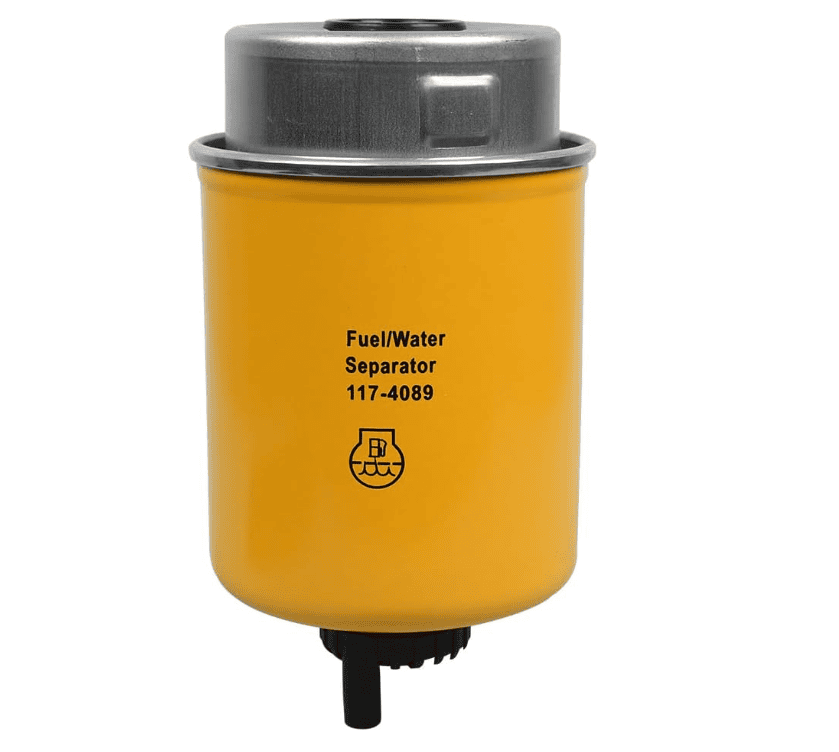

Fuel Water Separator 117-4089 / 145-8862 for Caterpillar Excavators, Loaders & Track-Type Equipment
117-4089 fuel water separator for Caterpillar excavators, loaders, and 3116/3126E engines. OEM cross-reference verified. Orders from IXIN Filter.
Description
This 117-4089 fuel water separator is a standard-efficiency spin-on filter engineered as a direct replacement for the Caterpillar 117-4089, sold as an assembly alongside the closely related 145-8862 filter head/base. It’s one of the most widely used fuel/water separators across CAT’s C-series excavator, wheel loader, and track-type equipment lineup built around the 3116, 3066, 3054T, 3064, 3046, and 3126E engine family.
Product Overview
The 117-4089 fuel water separator is designed to remove essentially all free water and the majority of emulsified water from diesel fuel, along with fine particulate contamination, helping extend the service life of the secondary fuel filter and protect precision fuel injectors from premature wear. As explained in this overview of fuel water separator function, water in diesel fuel can cause corrosion, microbial growth, and injector damage if it isn’t removed before reaching the engine. As a spin-on filter, it offers straightforward installation and a reliable seal. Each unit is dimensionally verified against OEM measurements and tested for filtration performance before shipment — not just matched by part number.
Fits the Following Caterpillar Models & Engines
| Category | Models |
|---|---|
| Excavators | CAT 311C, 312C, 315C, 318C, 319C, 320B, 320C, 320D, 321C, 321CLCR, 322BLN, 322BL, 323DL, 323DLN, 325B, 325BL, 325BLN, 330B, 330BL |
| Track Loaders | CAT 963B, 963BLGP, 963CLGP |
| Wheel Loaders | CAT 924F, 928G, 938F, 938G, 950F, 950FII, 950G, 960F, 962G, IT24F, IT28G, IT38F, IT38G |
| Backhoe Loaders | CAT 446D |
| Track-Type Tractors | CAT D5M, D6M |
| Pipelayers | CAT 561M |
| Paving Compactors | CAT CS-531C |
| Engines | Caterpillar 3116, 3066, 3064, 3054T, 3046, 3126E |
This filter is commonly sold as an assembly with the 145-8862 filter head/base. Always confirm your machine’s serial number range against the OEM cross-reference before ordering, as fuel system filtration specifications can vary across production years within the same model.
OEM Cross-Reference Numbers
| Brand | Number |
|---|---|
| Caterpillar | 117-4089, 1174089, 145-8862, 1458862, 100-6374, 138-3100, 163-4465, 206-6909 |
| Baldwin | BF1241, BF1254, BF7647, BF7650, BF7678D, BF7679, BF7679D, BF7681, BF7681D, BF7989D |
| Donaldson | FF1068, P550434, P550502, P551429, P551430, P551723, P564278, P564392, P564430, P564646, P771723 |
| Fleetguard | FS19514, FS19526, FS19555, FS19577, FS19810, FS19811, FS19814, FS19857, FS19858 |
| Agco | 836662561, 836862563 |
| Case IHC | P2950591, P2950591P |
| Fram | PS8322, PS8487 |
| Alco | SP1245 |
Key Features
- Standard-efficiency water separation, removing essentially all free water and the majority of emulsified water from diesel fuel
- Spin-on design for straightforward installation and reliable sealing
- Dimensionally verified against OEM specifications, not just cross-reference number matching
- Consistent batch quality control, with raw material and pre-shipment testing on every production run
- Broad application coverage, spanning CAT excavators, wheel loaders, track loaders, and track-type tractors on the 3116/3126E engine platform family
Specifications (Publicly Referenced Dimensions)
Dimensions below are compiled from publicly available cross-reference filter databases and were consistent across the sources checked. Please verify against your machine’s actual filter housing or OEM documentation before bulk ordering.
| Spec | Detail |
|---|---|
| Height | 152 mm |
| Outer Diameter (Max) | 83 mm |
| Inner Diameter / Depth (Max) | 17 mm |
| Filter Type | Spin-on fuel/water separator |
| Filter Media | Cellulose, standard efficiency |
| Application | Excavators, wheel loaders, track loaders, track-type tractors, pipelayers |
| Packaging Options | Standard retail box, bulk carton, or private-label packaging available |
Why Source This Fuel Water Separator from IXIN Filter
We manufacture this 117-4089 fuel water separator in our own production facility, with quality control checkpoints from raw material inspection through final pre-shipment testing. If you’re sourcing for a distribution business or fleet, we can provide:
- Sample units for independent testing before a bulk order
- Documentation on OEM cross-reference verification
- Flexible MOQ and private-label packaging options
- Consistent batch-to-batch quality for repeat orders
Frequently Asked Questions
Is the 117-4089 the same as the 145-8862? They’re closely related and commonly sold together as a fuel water separator assembly — the 117-4089 is typically the replaceable filter element, while 145-8862 refers to the assembly/base configuration. Confirm which specific component your machine requires before ordering.
Does this filter remove water from diesel fuel? Yes. The 117-4089 is designed to remove essentially all free water and the majority of emulsified water, along with fine contaminants, before fuel reaches the secondary filter and injection system.
Will this fit all the models listed? It fits the equipment listed above, but fuel system configurations can vary by production year and serial number range. We recommend confirming your machine’s specific configuration before ordering, especially for bulk purchases.
Do you offer samples before a bulk order? Yes. We recommend requesting a sample for independent testing before committing to a bulk order, especially for first-time buyers.
Ready to order or request a sample? Contact IXIN Filter for pricing, MOQ, and lead time on the 117-4089 fuel water separator.
