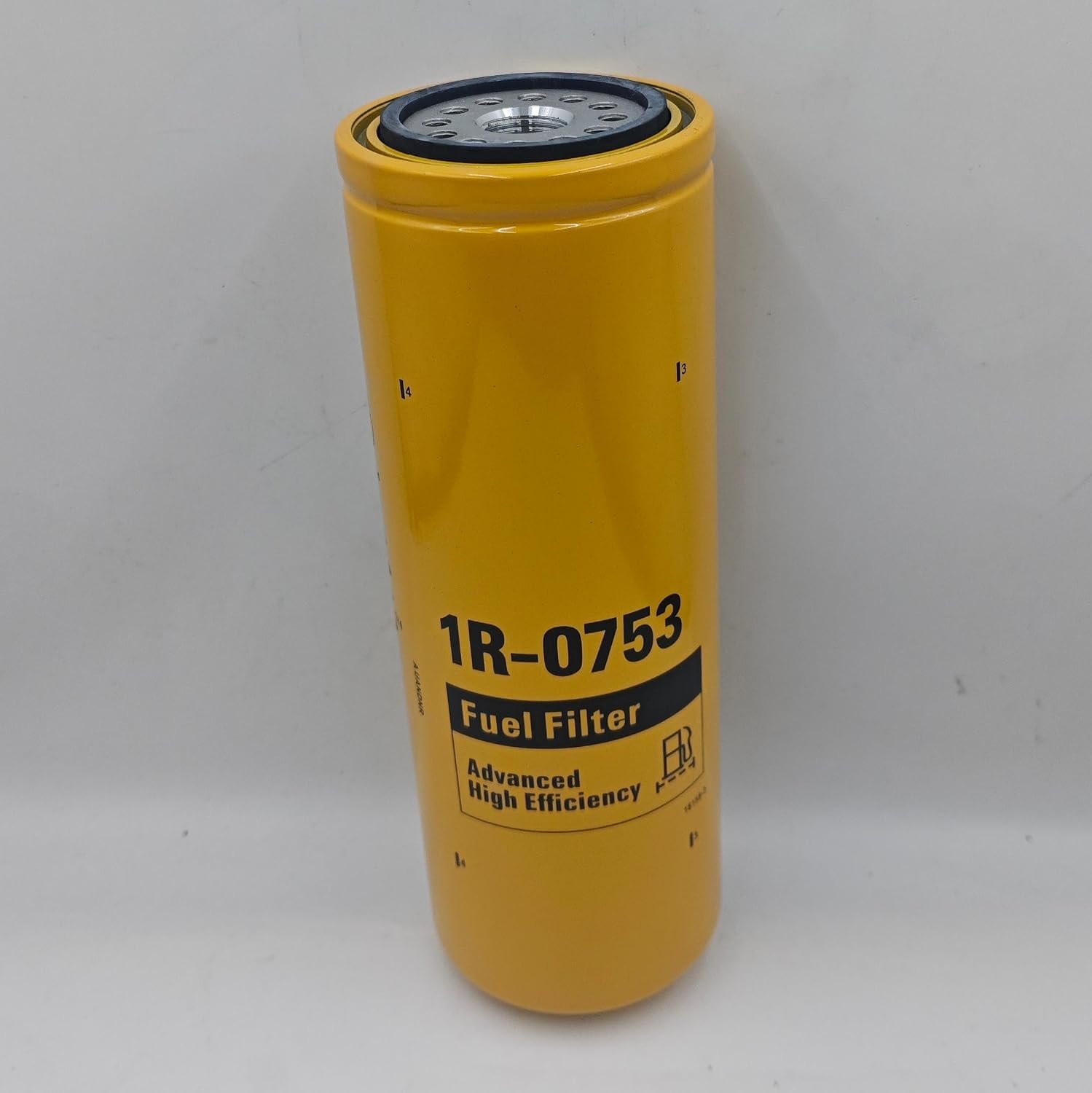

Rotary Fuel Filter 1R-0753 for Caterpillar Excavators, Compactors & Wheel Loaders
1R-0753 fuel filter for Caterpillar 322C, CS-series compactors, and 938G/950F loaders. OEM cross-reference verified. Orders from IXIN Filter.
Description
This 1R-0753 fuel filter is an advanced-efficiency spin-on fuel filter engineered as a direct replacement for the Caterpillar 1R-0753, used across a wide range of CAT excavators, paving compactors, wheel loaders, and motor graders. It’s designed to remove small contaminants from diesel fuel, protecting sensitive fuel injectors from premature wear and damage.
Product Overview
The 1R-0753 fuel filter uses advanced-efficiency filter media designed to remove fine contaminants from diesel fuel before they reach the fuel injection system. As a spin-on filter, it’s built with a standard 7/8-14 UN thread to match OEM housing specifications, offering straightforward installation and a reliable seal. Each unit is dimensionally verified against OEM measurements and tested for filtration performance before shipment — not just matched by part number.
Fits the Following Caterpillar Models & Engines
| Category | Models |
|---|---|
| Excavators | CAT 320B, 320BL, 320BN, 320BS, 322, 322L, 322LN, 322N, 322B, 322BLN, 322C, 322CL, 322CLN, 325B, 325BL, 325BLN, 325C |
| Paving Compactors | CAT CB-634C, CB-634D, CP-533C, CP-533D, CP-563, CP-563C, CP-563D, CS-531C, CS-531D, CS-533C, CS-533D, CS-563, CS-563C, CS-563D, CS-573, CS-573C, CS-573D, CS-583, CS-583C, CS-583D |
| Wheel-Type Loaders | CAT 924G, 924GZ, 928G, 938F, 938G, 950F, 950F II, 950G, 960F, 962G |
| Integrated Toolcarriers | CAT IT28G, IT38F, IT38G, IT62G |
| Backhoe Loaders | CAT 446B, 446D |
| Motor Graders | CAT 120H, 120H ES, 120H NA, 135H, 135H NA |
| Engines | Caterpillar 3114, 3116, 3126, 3126B, 3056, 3056E |
Always confirm your machine’s serial number range against the OEM cross-reference before ordering, as fuel system filtration specifications can vary across production years within the same model.
OEM Cross-Reference Numbers
| Brand | Number |
|---|---|
| Caterpillar | 1R-0753, 1R0753 |
| Baldwin | BF7631 |
| Donaldson | P551312 |
| Fleetguard | FF5322, FFR85322 |
| Fram | P8336 |
| Mann | WK970/2, WK9702 |
| WIX | 33527 |
| Napa | 3527 |
Key Features
- Advanced-efficiency filtration, designed to remove fine contaminants and protect fuel injectors
- Standard 7/8-14 UN spin-on thread to match OEM housing specifications
- Dimensionally verified against OEM specifications, not just cross-reference number matching
- Consistent batch quality control, with raw material and pre-shipment testing on every production run
- Broad application coverage, spanning CAT excavators, paving compactors, wheel loaders, integrated toolcarriers, and motor graders
Specifications (Publicly Referenced Dimensions)
Dimensions below are compiled from publicly available cross-reference filter databases, including Fuel Filter Cross Reference, and were consistent across multiple independent sources. Please verify against your machine’s actual filter housing or OEM documentation before bulk ordering.
| Spec | Detail |
|---|---|
| Height | 267 mm |
| Outer Diameter | 93.7-94 mm |
| Thread | 7/8-14 UN |
| Filter Type | Spin-on fuel filter |
| Filter Media | Advanced-efficiency filter media |
| Application | Excavators, paving compactors, wheel loaders, motor graders |
| Packaging Options | Standard retail box, bulk carton, or private-label packaging available |
Why Source This Fuel Filter from IXIN Filter
We manufacture this 1R-0753 fuel filter in our own production facility, with quality control checkpoints from raw material inspection through final pre-shipment testing. If you’re sourcing for a distribution business or fleet, we can provide:
- Sample units for independent testing before a bulk order
- Documentation on OEM cross-reference verification
- Flexible MOQ and private-label packaging options
- Consistent batch-to-batch quality for repeat orders
Frequently Asked Questions
What equipment uses the 1R-0753 fuel filter? It’s used across a wide range of CAT equipment, including the 322-series excavators, CS/CP-series paving compactors, 938G/950F wheel loaders, IT-series integrated toolcarriers, and 120H/135H motor graders, all typically paired with the 3116 or 3126 engine family.
Is this a primary or secondary fuel filter? The 1R-0753 is an advanced-efficiency fuel filter designed to remove fine contaminants, commonly used as the primary spin-on fuel filter across the listed applications.
Will this fit all the models listed? It fits the equipment listed above, but fuel system configurations can vary by production year and serial number range. We recommend confirming your machine’s specific configuration before ordering, especially for bulk purchases.
Do you offer samples before a bulk order? Yes. We recommend requesting a sample for independent testing before committing to a bulk order, especially for first-time buyers.
Ready to order or request a sample? Contact IXIN Filter for pricing, MOQ, and lead time on the 1R-0753 fuel filter.
