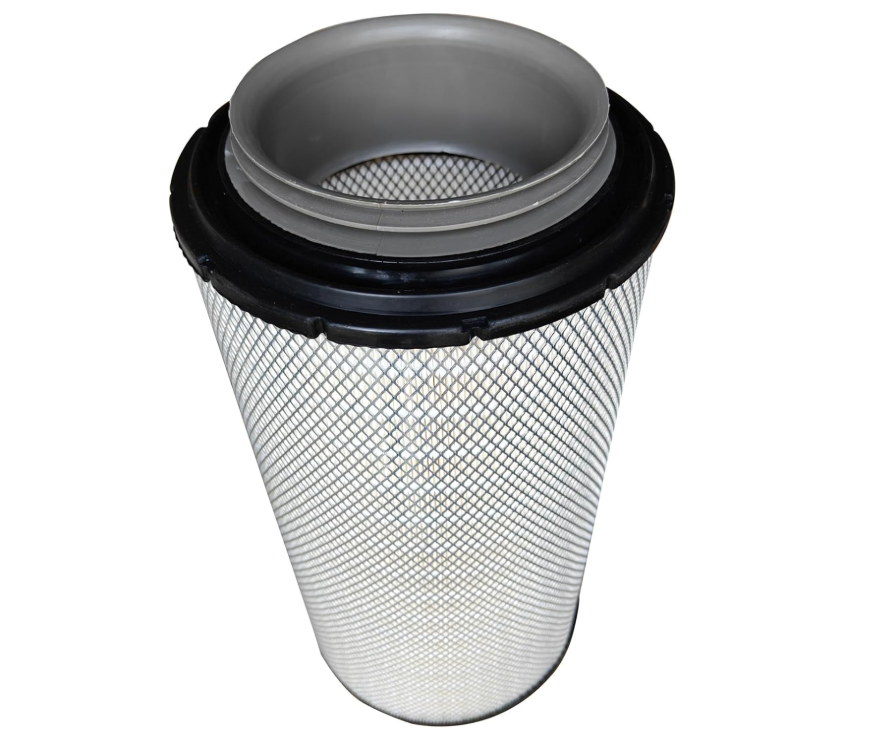

AF4195 Primary Air Filter for Kenworth & Peterbilt Trucks
AF4195 primary air filter for Kenworth & Peterbilt trucks with Paccar P614986 housing. Cross reference RS5288, WA10009, P625287. Factory direct.
Description
The AF4195 air filter is a primary extreme-performance radial seal air filter for Kenworth and Peterbilt trucks equipped with a Paccar P614986 air cleaner housing. It replaces the legacy Fleetguard AF27948 element and uses nano-enhanced cellulose media in an inside-out flow configuration, delivering the dust-loading capacity needed for highway and severe-duty service. IXIN Filter manufactures this filter to OEM-equivalent specifications, giving fleets and dealers a reliable, factory-direct alternative for scheduled air filter replacement.
As an IATF 16949-certified filter manufacturer, IXIN supplies the AF4195 air filter to distributors, fleet operators and service centers in 60+ countries, with consistent batch quality and full traceability for bulk and OEM orders.
Product Specifications
| Attribute | Detail |
|---|---|
| Product Type | Extreme Performance Radial Seal Primary Air Filter |
| Height | 24 5/32 in (613.41 mm) |
| Outer Diameter | 11 13/32 in (289.7 mm) |
| Inner Diameter 1 | 3 25/32 in (96.0 mm) |
| Inner Diameter 2 | 7 5/8 in (193.7 mm) |
| Media Type | Nano-enhanced cellulose, inside-out flow configuration |
| Includes | Inlet adapter, furnished gasket |
| Weight | approx. 9.4 lb (4.3 kg) |
| Certification | IATF 16949 |
Compatible Vehicles
- Peterbilt 367 (2008–2022)
- Peterbilt 388 (2008–2015)
- Peterbilt 389 (2014–2018, 2020, 2022)
- Kenworth C500 (1999–2000, 2002–2015)
- Kenworth W900 (1999–2018, 2021)
- Kenworth T800 (1999–2000, 2002–2019, 2024)
Note: All models use a Paccar P614986 air cleaner housing. Verify your truck’s exact model year against the OE filter number stamped on your existing element before ordering.
AF4195 Cross Reference / OE Replacement Numbers
The AF4195 air filter is a direct cross reference and replacement for the following OE and aftermarket part numbers:
| Brand / Source | Part Number |
|---|---|
| Fleetguard/Cummins Filtration | AF4195 |
| Fleetguard (legacy, superseded) | AF27948 |
| Paccar OE | P614986 |
| Baldwin | RS5288XP |
| Donaldson | P625287 |
| WIX | WA10009 |
| NAPA Gold | 500009 |
| Carquest | 93009 |
| Luber-finer | LAF6986 / LAF6986MXM |
| Hastings | AF2491XP |
| Hifi Filter | SA16852 |
| K&N Engineering | 382043R |
| Premium Guard | HA40353 |
Why Choose IXIN’s AF4195 Air Filter
- Extreme Performance Nano Media — Nano-enhanced cellulose media provides higher initial efficiency and greater dirt-holding capacity than conventional cellulose-only filters, extending service intervals.
- Purpose-Built for Paccar P614986 Housings — Designed specifically for the air cleaner housing used on Kenworth and Peterbilt trucks, ensuring proper fit and seal.
- Radial Seal Design — Creates consistent contact within the air cleaner housing, directing airflow through the filtration element and preventing unfiltered air bypass.
- OEM-Equivalent Fit — Manufactured to match OE dimensions for the AF4195, supporting drop-in compatibility.
- Factory-Direct Supply — As a manufacturer (not a trading company), IXIN offers stable lead times and customization options for private label, packaging and media specification.
- Bulk & OEM Pricing — Volume discounts available for fleet operators, distributors and workshops. For guidance on verifying cross reference numbers before a bulk order, see our fuel filter cross reference guide — the same verification principles apply across air, fuel and hydraulic filter categories.
Installation & Maintenance Notes
For Kenworth and Peterbilt trucks using the AF4195 air filter, general service steps include:
- Shut down the engine and allow the air intake system to cool before servicing.
- Open the Paccar P614986 air cleaner housing and remove the old primary element.
- Inspect the housing for dust buildup or debris before installing the new element.
- Install the new AF4195 filter, ensuring the seal seats evenly to prevent unfiltered air bypass, and secure the housing cover.
- Recommended replacement interval: follow your truck’s OEM service schedule, typically based on mileage or a restriction indicator reading.
FAQ
Q: Is the AF4195 a radial seal or axial seal filter? A: The AF4195 uses a radial seal design, confirmed by Baldwin’s official product documentation for the equivalent RS5288XP specification.
Q: Does the AF4195 replace the older AF27948? A: Yes. The AF4195 replaces the legacy Fleetguard AF27948 element for the same Paccar P614986 housing application, with upgraded nano-enhanced media.
Q: Is the AF4195 compatible with all Kenworth and Peterbilt trucks? A: The AF4195 is designed for trucks using a Paccar P614986 air cleaner housing. Verify your housing model and the OE filter number stamped on your existing element before ordering.
Q: What’s the difference between IXIN’s AF4195 and the OEM Fleetguard filter? A: IXIN manufactures this filter to match OEM dimensions and the cellulose media specification. The main difference is price and lead time — IXIN offers factory-direct pricing for bulk and OEM orders without compromising fit or filtration performance.
Q: Can I order the AF4195 with custom packaging or private label? A: Yes. IXIN supports customized packaging, labeling and media specifications for distributors and private-label buyers. Contact our sales team with your requirements.
Q: What is the minimum order quantity (MOQ)? A: MOQ varies by customization level. Get in touch with us via WhatsApp or email for current MOQ and lead time on the AF4195 air filter.
