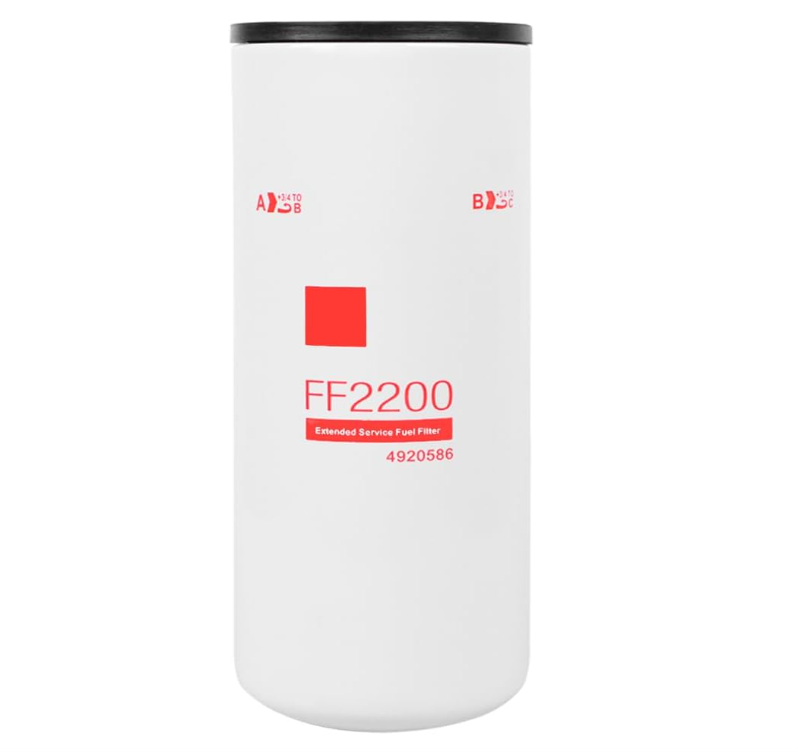

FF2200 Secondary Fuel Filter for Cummins ISX, ISX15, X15 Engines
FF2200 (4088272) secondary fuel filter for Cummins ISX, ISX15, X15 engines. Cummins Enforcer-approved. Cross reference BF7766, LFF2201. Factory direct.
Description
The FF2200 fuel filter (Cummins part number 4088272) is a “pressure-side” secondary spin-on fuel filter for the Cummins ISX/ISX15/X15 engine platform, used across International, Kenworth, Mack, Peterbilt and Volvo trucks. It’s the Cummins Enforcer Engine Program-approved service filter, using StrataPore synthetic media to protect high-pressure common-rail injectors and the CAPS/HPI fuel system from particulate contamination. IXIN Filter manufactures this filter to OEM-equivalent specifications, giving fleets and dealers a reliable, factory-direct alternative for scheduled fuel filter replacement.
As a TS16949-certified filter manufacturer, IXIN supplies the FF2200 fuel filter to distributors, fleet operators and service centers in 60+ countries, with consistent batch quality and full traceability for bulk and OEM orders.
Product Specifications
| Attribute | Detail |
|---|---|
| Product Type | Spin-on Secondary Fuel Filter (“Pressure-Side”) |
| Thread Size | M72 x 2-7H |
| Media Type | StrataPore synthetic media |
| Filtration Rating | 15 microns at approximately 98.7% TWA efficiency |
| Program Approval | Cummins Enforcer Engine Program-approved service filter |
| Certification | TS16949 |
Compatible Engines & Vehicles
- Cummins ISX, ISX15, X15 engine platform
- International trucks equipped with the above Cummins engines
- Kenworth trucks equipped with the above Cummins engines
- Mack trucks equipped with the above Cummins engines
- Peterbilt trucks equipped with the above Cummins engines
- Volvo trucks equipped with the above Cummins engines
Note: Confirm your engine’s exact model and thread size (M72 x 2-7H) against the OE part number before ordering, as Cummins ISX platform configurations can vary across production years.
FF2200 Cross Reference / OE Replacement Numbers
The FF2200 fuel filter is a direct cross reference and replacement for the following OE and aftermarket part numbers:
| Brand / Source | Part Number |
|---|---|
| Cummins OE | 4088272 |
| Cummins OE (alt.) | 4920586 |
| Cummins OE (alt.) | 4807107 |
| Baldwin | BF7766 |
| Donaldson | P552200 / P9644 |
| Luber-finer / Champ | LFF2201 |
| WIX | 33711 |
| NAPA | 3711 |
| Carquest | 86711 |
| Big A | 95711 |
Why Choose IXIN’s FF2200 Fuel Filter
- Enforcer Program-Level Filtration Standard — Built to the same performance benchmark as the Cummins Enforcer Engine Program-approved service filter, giving fleets confidence in consistent protection for CAPS/HPI fuel systems.
- High Filtration Efficiency — StrataPore synthetic media rated at approximately 98.7% TWA efficiency at 15 microns, protecting high-pressure common-rail injectors from fine particulate contamination.
- Broad Truck Brand Coverage — Fits Cummins ISX/ISX15/X15 applications across International, Kenworth, Mack, Peterbilt and Volvo trucks, useful for mixed-fleet operators standardizing fuel filter inventory.
- OEM-Equivalent Fit — Manufactured to match the OE M72 x 2-7H thread specification for the FF2200, ensuring drop-in compatibility.
- Factory-Direct Supply — As a manufacturer (not a trading company), IXIN offers stable lead times and customization options for private label, packaging and media specification. For guidance on verifying cross reference numbers before a bulk order, see our fuel filter cross reference guide.
Installation & Maintenance Notes
For Cummins ISX/ISX15/X15 engines using the FF2200 secondary fuel filter, general service steps include:
- Relieve fuel system pressure before removing the old filter.
- Lightly oil the new gasket with clean diesel fuel before installation to ensure a proper seal.
- Hand-tighten per manufacturer torque specification for the M72 x 2-7H thread — avoid over-tightening, which can damage the gasket seal.
- Prime the fuel system per OEM procedure before restarting the engine.
- Always replace the secondary fuel filter at OEM-recommended service intervals to protect the high-pressure fuel system.
FAQ
Q: What does “pressure-side” secondary fuel filter mean? A: It refers to the FF2200’s position in the fuel system — filtering fuel after it has been pressurized by the transfer pump, providing a final stage of fine filtration before fuel reaches the high-pressure injection system.
Q: Is the FF2200 approved by Cummins for use in their Enforcer Engine Program? A: Yes — the FF2200 is documented as the Cummins Enforcer Engine Program-approved service filter for the ISX platform.
Q: What’s the difference between IXIN’s FF2200 and the OEM Cummins filter? A: IXIN manufactures this filter to match the OE thread specification and StrataPore-equivalent filtration performance. The main difference is price and lead time — IXIN offers factory-direct pricing for bulk and OEM orders without compromising fit or filtration performance.
Q: Can I order the FF2200 with custom packaging or private label? A: Yes. IXIN supports customized packaging, labeling and media specifications for distributors and private-label buyers. Contact our sales team with your requirements.
Q: What is the minimum order quantity (MOQ)? A: MOQ varies by customization level. Get in touch with us via WhatsApp or email for current MOQ and lead time on the FF2200 fuel filter.
