FF5421 Fuel Filter for AEBI Sweeper Trucks & Avia/Ashok Leyland Trucks
FF5421 spin-on fuel filter for AEBI 5000/5500 sweeper trucks and Avia/Ashok Leyland 100 trucks. Cross reference BF7966, P550881, WIX 33682. Factory direct.
Description

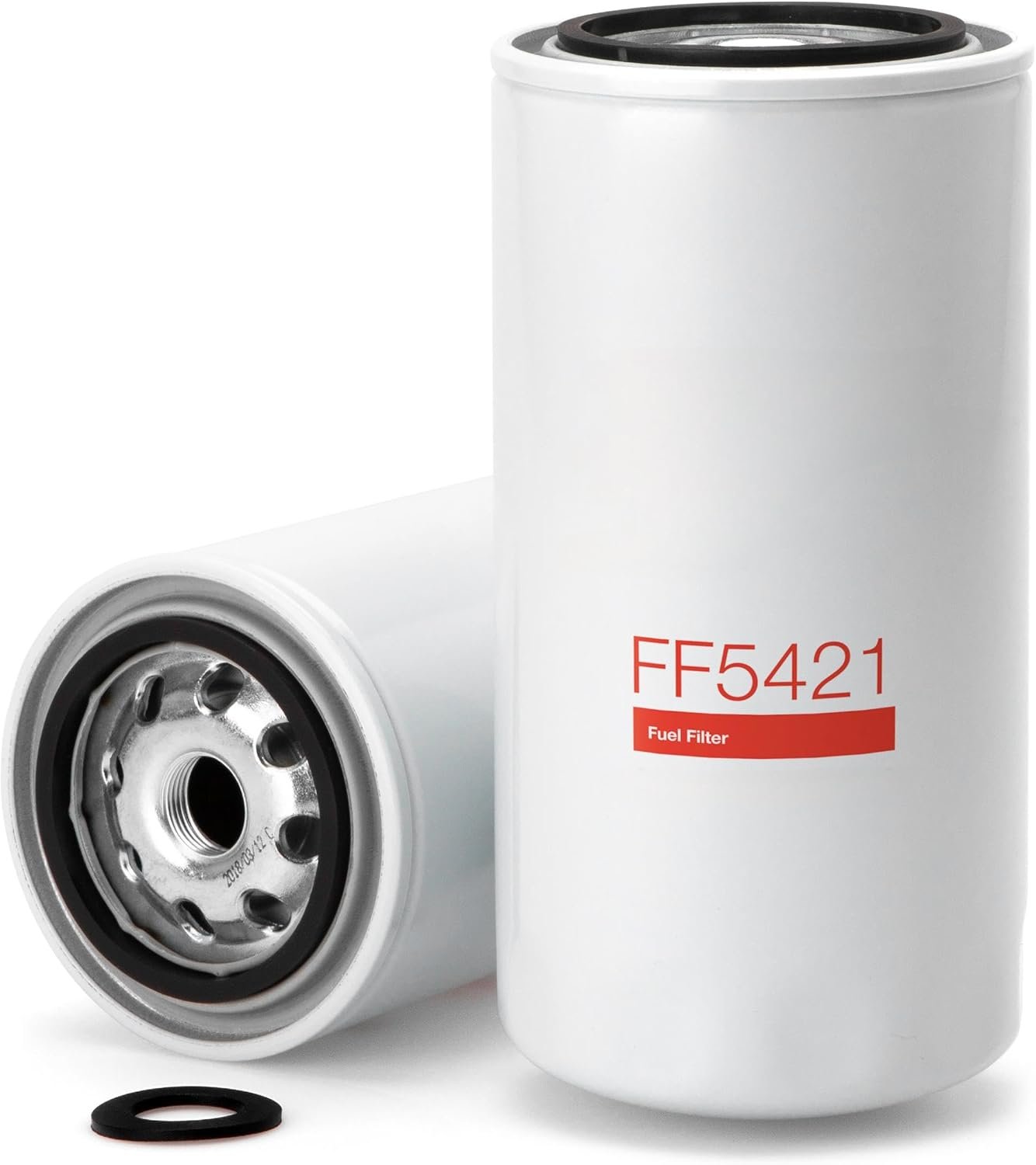

The FF5421 fuel filter is a spin-on full-flow fuel filter using StrataPore/meltblown filtration media, built around the widely-used Cummins 4897897 filter platform. It’s used across AEBI 5000 and 5500 sweeper trucks, and 2007-model-year Avia/Ashok Leyland 100 trucks, among a very broad range of construction and industrial equipment worldwide that share the same Cummins-derived engine platform. IXIN Filter manufactures this filter to OEM-equivalent specifications, giving distributors and dealers a reliable, factory-direct alternative for scheduled fuel filter replacement.
As a TS16949-certified filter manufacturer, IXIN supplies the FF5421 fuel filter to distributors and service centers in 60+ countries, with consistent batch quality and full traceability for bulk and OEM orders.
Product Specifications
| Attribute | Detail |
|---|---|
| Product Type | Spin-On Full-Flow Fuel Filter |
| Overall Height | 192.5 mm (7.58 in) |
| Largest Outer Diameter | 94.5–95 mm (3.72 in) |
| Gasket Outer Diameter | 70.5 mm (2.776 in) |
| Gasket Inside Diameter | 62.5 mm (2.461 in) |
| Thread Size | M20 x 1.5-6H INT |
| Micron Rating | 4 microns |
| Filtration Efficiency (TWA) | 98% (per SAE J1858/J1985) |
| Unit Weight | approx. 1.75 lb (0.79 kg) |
| Certification | TS16949 |
Compatible Vehicles & Equipment
- AEBI 5000 Sweeper Truck
- AEBI 5500 Sweeper Truck
- Avia / Ashok Leyland Motors 100 Truck (2007 model year)
Note: This filter is built around a very widely-used Cummins-derived filter platform (Cummins 4897897) and is also cross-referenced for a broad range of other equipment brands worldwide, including Case IH, JCB, Hyundai Construction Equipment, Mack, DAF, Hamm, and Fiat Kobelco, among others. If your equipment isn’t listed above but uses a Cummins-based fuel system, check the full cross reference list below or confirm fitment with our team.
FF5421 Cross Reference / OE Replacement Numbers
The FF5421 fuel filter is a direct cross reference and replacement for the following OE and aftermarket part numbers:
| Brand / Source | Part Number |
|---|---|
| Fleetguard/Cummins | FF5421 |
| Cummins OE | 4897897 / 3978040 |
| Baldwin | BF7966 |
| Donaldson | P550881 |
| NAPA | 3682 |
| WIX | 33682 |
| Carquest | 96257 |
| Luber-finer | LFF5421 |
| Mack | 5839FF5421 / 5839FF5485 |
| Case IH | J978040 / 5801477167 |
| J.C.B. | 32/925932 |
| Hyundai Construction Equipment | 11LC-70010 / 11Q770010 |
Note: This platform has an unusually broad global cross reference list spanning agricultural, construction and industrial equipment brands. Confirm your specific equipment model against the OE part number before ordering.
Why Choose IXIN’s FF5421 Fuel Filter
- High Filtration Efficiency — Rated at 98% efficiency (TWA) at 4 microns, protecting fuel injection components from fine particulate contamination.
- Broad Global Equipment Coverage — Built on a widely-adopted Cummins-derived filter platform used across sweeper trucks, agricultural equipment and construction machinery worldwide.
- OEM-Equivalent Fit — Manufactured to match the OE M20 x 1.5-6H INT thread specification and dimensions for the FF5421, ensuring drop-in compatibility.
- Factory-Direct Supply — As a manufacturer (not a trading company), IXIN offers stable lead times and customization options for private label, packaging and media specification.
- Bulk & OEM Pricing — Volume discounts available for distributors and equipment dealers. For guidance on verifying cross reference numbers before a bulk order, see our fuel filter cross reference guide — especially useful for a filter with this many cross-brand equivalents.
Installation & Maintenance Notes
For AEBI sweeper trucks and Avia/Ashok Leyland trucks using the FF5421 fuel filter, general service steps include:
- Relieve fuel system pressure before removing the old filter.
- Lightly oil the new gasket with clean diesel fuel before installation to ensure a proper seal.
- Hand-tighten per manufacturer torque specification for the M20 x 1.5-6H INT thread — avoid over-tightening, which can damage the gasket seal.
- Prime the fuel system per OEM procedure before restarting the engine.
- Follow your specific equipment’s recommended service interval — always confirm against your maintenance schedule and duty cycle.
FAQ
Q: Is the FF5421 only for AEBI and Avia/Ashok Leyland vehicles? A: No — while this filter fits AEBI 5000/5500 sweeper trucks and Avia/Ashok Leyland 100 trucks, it’s built on a very widely-used Cummins-derived filter platform and is cross-referenced for many other equipment brands worldwide, including Case IH, JCB, Mack, DAF and Hyundai Construction Equipment.
Q: What’s the difference between IXIN’s FF5421 and the OEM Fleetguard filter? A: IXIN manufactures this filter to match the OE thread specification, dimensions and the 98% efficiency rating at 4 microns. The main difference is price and lead time — IXIN offers factory-direct pricing for bulk and OEM orders without compromising fit or filtration performance.
Q: Can I order the FF5421 with custom packaging or private label? A: Yes. IXIN supports customized packaging, labeling and media specifications for distributors and private-label buyers. Contact our sales team with your requirements.
Q: What is the minimum order quantity (MOQ)? A: MOQ varies by customization level. Get in touch with us via WhatsApp or email for current MOQ and lead time on the FF5421 fuel filter.
