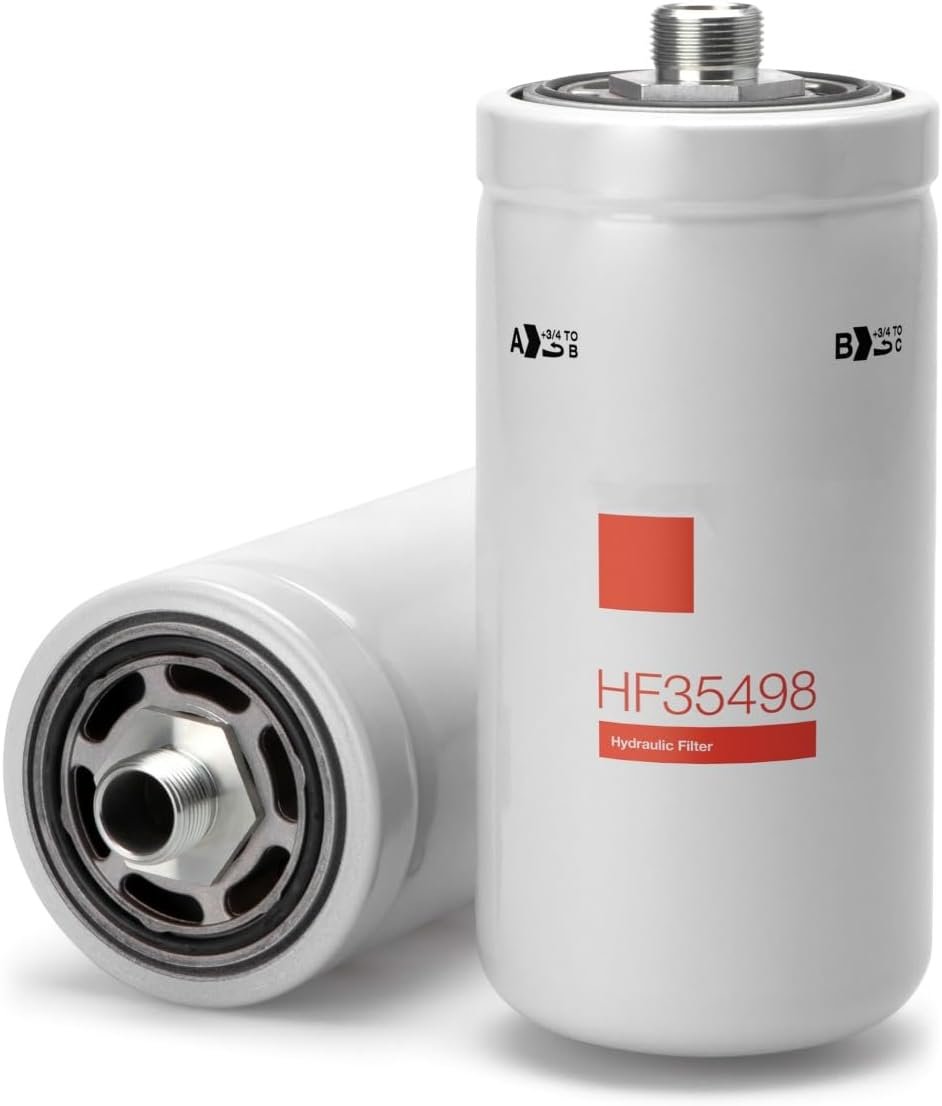

HF35498 Spin-On Hydraulic Filter for Case Equipment
HF35498 spin-on hydraulic filter for Case equipment. 8 micron at Beta 200, 999.8 psi burst pressure. Cross reference BT9422, P764729. Factory direct.
Description
The HF35498 hydraulic filter is a spin-on hydraulic filter manufactured by Cummins Filtration (Fleetguard), primarily used on Case construction equipment. It protects hydraulic pumps, valves and cylinders by capturing fine contaminants from circulating hydraulic fluid, with outside-in flow direction for reliable filtration performance. IXIN Filter manufactures this filter to OEM-equivalent specifications, giving distributors and dealers a reliable, factory-direct alternative for scheduled hydraulic filter replacement.
As an IATF 16949-certified filter manufacturer, IXIN supplies the HF35498 hydraulic filter to distributors and service centers in 60+ countries, with consistent batch quality and full traceability for bulk and OEM orders.
Product Specifications
| Attribute | Detail |
|---|---|
| Product Type | Spin-On Hydraulic Filter |
| Overall Height | 219.96–220 mm (8.66 in) |
| Largest Outer Diameter | 95–95.25 mm (3.75 in) |
| Gasket Outer Diameter | 70.15 mm (2.762 in) |
| Gasket Inside Diameter | 63.09 mm (2.484 in) |
| Thread Size | M24 x 1.5-6G EXT |
| Flow Direction | Outside In |
| Hydrostatic Burst Minimum | 6895 kPa (999.8 psi) |
| Particle Size at Beta 200 | 8 microns |
| Certification | IATF 16949 |
Compatible Equipment
- Case construction equipment (Primary application: Case 8603535)
Note: Confirm your specific Case equipment model and hydraulic system configuration against the OE part number before ordering.
HF35498 Cross Reference / OE Replacement Numbers
The HF35498 hydraulic filter is a direct cross reference and replacement for the following OE and aftermarket part numbers:
| Brand / Source | Part Number |
|---|---|
| Fleetguard/Cummins Filtration | HF35498 |
| Case OE | 8603535 |
| Baldwin | BT9422 |
| Donaldson | P764729 |
| NAPA | 7723 / 400186 |
| WIX | 57723 |
| Fleetguard (alternative) | HF35140 |
Why Choose IXIN’s HF35498 Hydraulic Filter
- High Burst Pressure Rating — Rated at a minimum hydrostatic burst pressure of 999.8 psi (6895 kPa), providing a strong safety margin under hydraulic system pressure spikes.
- Precise Filtration Performance — Rated at 8 microns at Beta 200 per multi-pass testing standards, providing strong protection for hydraulic pumps, valves and cylinders.
- OEM-Equivalent Fit — Manufactured to match the OE M24 x 1.5-6G EXT thread specification and dimensions for the HF35498, ensuring drop-in compatibility for Case equipment.
- Factory-Direct Supply — As a manufacturer (not a trading company), IXIN offers stable lead times and customization options for private label, packaging and media specification.
- Bulk & OEM Pricing — Volume discounts available for distributors and equipment dealers. For guidance on verifying cross reference numbers before a bulk order, see our fuel filter cross reference guide — the same verification principles apply across hydraulic, air and fuel filter categories.
Installation & Maintenance Notes
For Case equipment using the HF35498 hydraulic filter, general service steps include:
- Ensure the hydraulic system is depressurized and the machine is on level ground before servicing.
- Position a drain container under the filter housing, as some residual hydraulic fluid will be released during removal.
- Remove the old filter element and inspect the housing for metal particles or excessive contamination.
- Install the new HF35498 filter, tightening per manufacturer torque specification for the M24 x 1.5-6G EXT thread — avoid over-tightening, which can damage the gasket seal.
- Check hydraulic fluid level and top up as needed per OEM specification before returning the machine to service.
- Follow your specific Case equipment’s recommended service interval.
FAQ
Q: What does “8 micron at Beta 200” mean for hydraulic filter performance? A: This rating comes from standardized multi-pass testing and indicates the filter captures a very high percentage of particles at 8 microns and larger, providing precise protection for sensitive hydraulic components like pumps and valves.
Q: Is the HF35498 compatible with all Case equipment? A: The HF35498’s primary application is Case 8603535. Confirm your specific Case equipment model and hydraulic system configuration against the OE part number before ordering.
Q: What’s the difference between IXIN’s HF35498 and the OEM Fleetguard filter? A: IXIN manufactures this filter to match the OE thread specification, dimensions and the documented burst pressure/filtration performance. The main difference is price and lead time — IXIN offers factory-direct pricing for bulk and OEM orders without compromising fit or performance.
Q: Can I order the HF35498 with custom packaging or private label? A: Yes. IXIN supports customized packaging, labeling and media specifications for distributors and private-label buyers. Contact our sales team with your requirements.
Q: What is the minimum order quantity (MOQ)? A: MOQ varies by customization level. Get in touch with us via WhatsApp or email for current MOQ and lead time on the HF35498 hydraulic filter.
